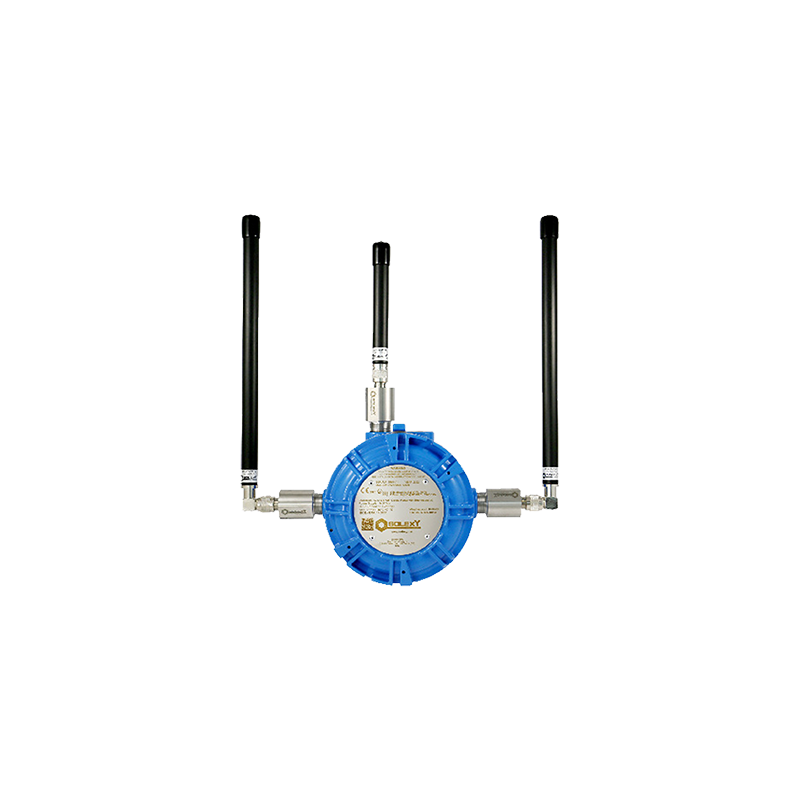

CELLULAR ROUTER AND ACCESS POINT
The Solexy SWA/SWS R* is a compact, reliable, and cost-efficient industrial 4G/LTE and 5G RedCap router designed for operation in harsh environments and hazardous locations. It provides connectivity via WiFi hotspot or Ethernet port, using the cellular network as its backbone.
Ask for the price
Equipped with external N-type or SMA/ RP-SMA antenna connectors, the router allows flexible antenna selection and easy optimization of signal reception. The SWA/SWS R*** industrial routers feature advanced security capabilities and are widely used for 4G/5G backup, remote access, out-of-band management, as well as VPN and tunneling services in IoT networking applications. Housed in Solexy’s rugged SWA and SWS enclosures with IP-rated protection and certified by ATEX, IECEx, and North American standards, these routers provide a robust wireless communication solution for installation in Ex-classified areas (gas, dust, mining) and other demanding environments, including Zone 1.
Advantages:
- Operates as a WiFi access point (WiFi to LAN or WiFi to 2G/3G/4G/5G RedCap) or as a WiFi client (LAN to WiFi).
- Cellular connectivity performance: 5G RedCap up to 223 Mbps, 4G LTE Cat 4 up to 150 Mbps, 3G up to 42 Mbps, and 2G up to 236.8 kbps.
- Supports IEEE 802.11 b/g/n standards, both in Access Point (AP) and Station (STA) modes.
- SMS functions include status monitoring, configuration via SMS, and send/read capability through HTTP POST/GET.
- Housed in explosion-proof enclosures made of aluminum (SWA series) or stainless steel (SWS series), with IP66/68 weather protection.
- Available with advanced 5G RedCap cellular connectivity.
| Power supply | 9 - 30 VDC, Passive PoE |
| Power consumption | 5W |
| Ambient temp. range | SWARxx33 & SWARxx45: 2,6 kg SWARxx30 & SWARxx54: 2,9 kg (bez anteny) SWSRxx33 & SWSRxx45: 5,3 kg SWSRxx30 & SWSRxx54: 5,6 kg (bez anteny) |
| Weight | SWARxx33 & SWARxx45: 2,6 kg SWARxx30 & SWARxx54: 2,9 kg (without antenna) SWSRxx33 & SWSRxx45: 5,3 kg SWSRxx30 & SWSRxx54: 5,6 kg (without antenna) |
| WiFi | 802.11 b/g/n - Up to 50 simultaneous connections |
| Supported bands* | 4G (LTE-FDD) B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28 4G (LTE-TDD) B38, B39, B40, B41 3G B1, B2, B4, B5, B6, B8, B19 2G B2, B3, B5, B8 |
1,2,M1
