WIFI MIMO DUAL-RADIO ACCESS POINT

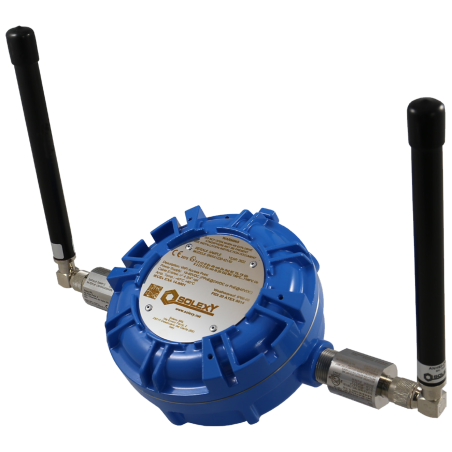

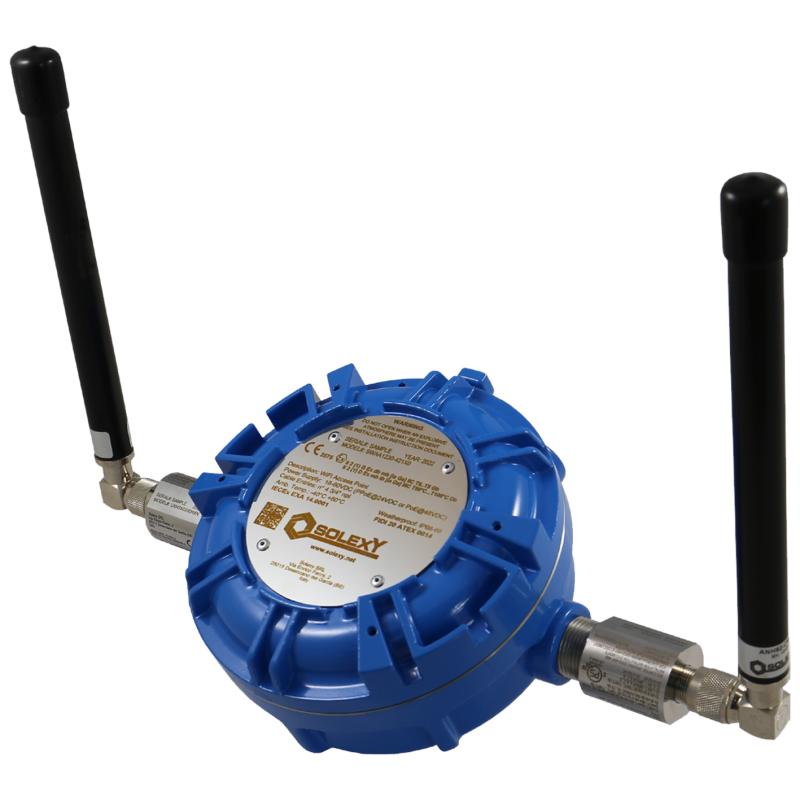

Solexy SWA/SWS A1* is the most compact industrial WiFi MIMO 2×2 access point designed for installation in hazardous areas and demanding environments. The device can be fully configured via Ethernet or WiFi, using either a standard web browser or dedicated configuration software. It provides routing, filtering, and advanced security features including 802.11i.
Ask for the price
The access point supports multiple operating modes: access point, client, repeater, and MESH. It is available in three radio configurations, all supporting 2.4/5 GHz: 802.11/n MIMO 2x2 (A10), 802.11/ac MIMO 2x2 (A11), or a unique dual-radio 802.11/n + 802.11/ ac setup, where one radio builds the MESH backbone while the other functions as a local access point. Power can be supplied via PoE (PoE or PPOE) or directly through dedicated terminals. Housed in rugged Solexy SWA and SWS enclosures with IP66/68 protection and certified by ATEX, IECEx, and North American standards, this solution provides a reliable wireless networking option for Ex-classified areas (gas, dust, and mining), including Zone 1 environments.
Advantages:
- Operating modes include WiFi access point, client, repeater, and MESH (available on A10 and A12 models only).
- Radio configurations: - A10: 802.11a/b/g/n, MIMO 2x2, 2.4/5 GHz, with Adaptive Noise Immunity (ANI) - A11: 802.11a/b/g/n/ac, MIMO 2x2, 2.4/5 GHz, with ANI - A12: Dual-radio setup with 802.11a/b/g/n, MIMO 2x2, 2.4/5 GHz, plus 802.11a/b/g/n/ac, MIMO 2x2, 2.4/5 GHz
- Equipped with a single-port gigabit Ethernet interface (10/100/1000 Base-TX) with autosensing, auto MDI/MDIX crossover, and RJ45 connector.
- Explosion-proof enclosure available in aluminum (SWA series) or stainless steel (SWS series), with weatherproof protection rated IP66/68.
| Power supply | 18-60 VDC Power method: dedicated terminals or POE or PPOE (Passive Power Over Ethernet |
| Power consumption | 8W |
| Ambient temp. range | ATEX & IECEx SWA series -40°C (-40°F) +60°C (+140°F) SWS Series -40°C (-40°F) +50°C (+122°F) |
| Weight | SWAA10 & SWAA11: 2,6 Kg - SWAA12: 2,9 Kg (without antenna) SWSA10 & SWSA11: 25,3 Kg - SWSA12: 5,6 Kg (without antenna) |
| WiFi interfaces | A10: 802.11a/b/g/n, MIMO 2x2, 2.4/5GHz, ANI (Adaptive Noise Immunity) A11: 802.11a/b/g/n/ac, MIMO 2x2, 2.4/5GHz, ANI A12: 802.11a/b/g/n, MIMO 2x2, 2.4/5GHz, plus 802.11a/b/g/n/ac, MIMO 2x2, 2.4/5GHz |
| WiFi radio data rate | A10 (WiFi 1): up to 250Mbps A11 (WiFi 2): up to 600 Mbps A12: (WiFi 1+2): up to 250 Mbps (WiFi 1) and up to 360 Mbps (WiFi 2) |
1,2,M1
