BLUETOOTH SERIAL ADAPTER

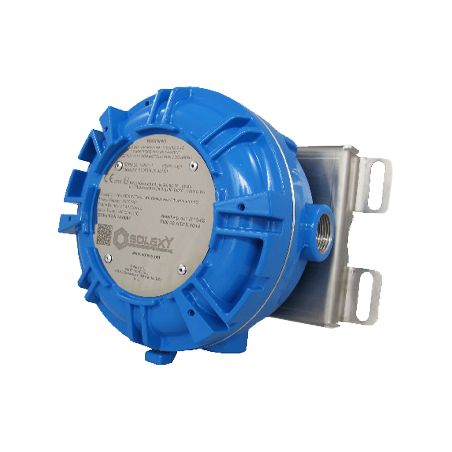

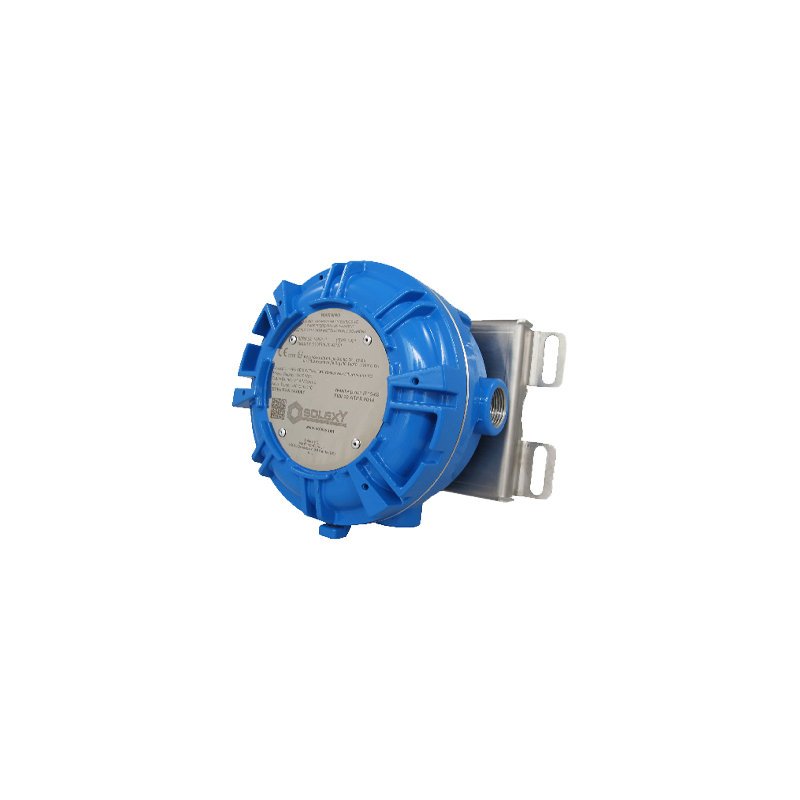

The Solexy SWA/SWS B The Solexy SWA/ SWS B** is a compact, cost-efficient solution for wireless serial data transmission in hazardous areas, where direct connection or disconnection of serial ports is typically not possible. It is available with RS232 and RS485/422 interfaces, making it a versatile choice for M2M applications. The device enables the creation of a virtual cable, allowing EX laptops or smartphones to connect wirelessly to serial ports. With the robust design of Solexy’s SWA and SWS enclosures, combined with ATEX, IECEx, and North America certifications, this solution ensures reliable wireless connectivity for use in classified Ex zones (gas, dust, and mining) and harsh environments such as Zone 1.
Ask for the price
Advantages:
- Replacement for RS232 and RS485/422 serial cables, based on Bluetooth V2.0 + EDR.
- Allows up to four simultaneous connections and supports the SPP (Serial Port Profile) Bluetooth protocol, ensuring compatibility with PDAs, laptops, and other devices.
- User-friendly Windows configuration tool included — no external drivers needed.
- Explosion-proof housing available in aluminum (SWA series) or stainless steel (SWS series), with weather protection rated IP66/68.
- Equipped with a Class 1 Bluetooth radio, enabling wireless communication over distances up to 100 m (328 ft).
| Power supply | 5 – 12 VDC |
| Power consumption | min. 2 mA – maks. 80 mA |
| Ambient temp. range | ATEX & IECEx SWA series -40°C do +85°C SWS series -40°C do +85°C SWA series -40°C do +83°C SWS series -40°C do +82°C |
| Weight | SWABxx03: 2,3 kg (without antenna) SWSBxx03: 4,9 kg (without antenna) |
| Serial speed | Up to 921.6 kbps |
| CTR/RTS i DTR/DSR | CTR/RTS flow control DTR/DSR for loop-back & full transfer (RS232 only) |
1,2,m1
Data sheet
- Weight
- SWABxx03: 2,3 kg (without antenna) SWSBxx03: 4,9 kg (without antenna)
