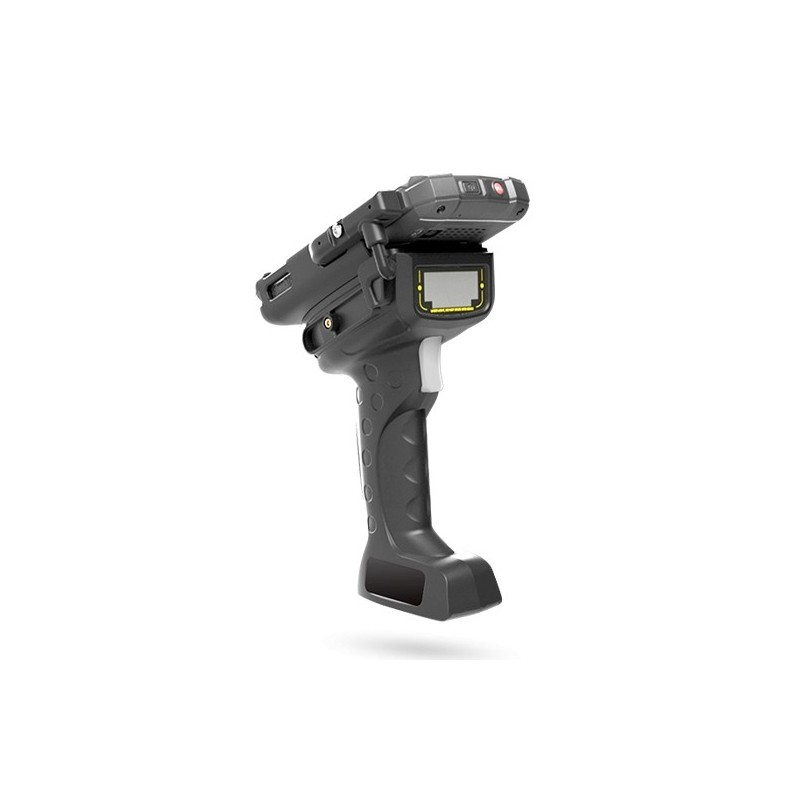

SCANNER RG-TH
To ensure flexible and reliable data capture in industrial environments, the RG530 smartphone is equipped with a specially designed portable barcode scanner. The trigger-activated scanner is ready to use and capable of quickly and efficiently capturing both 1D and 2D barcodes, even when they are dirty or distorted. The product is available in two variants, enabling short- and long-distance data collection. Thanks to the use of Zebra scanners, the reader is capable of reading codes from a distance of up to 6 meters or 18 meters, depending on the variant selected. In addition, the RG-TH operates in the HID standard, which enables real-time data transfer between the reader and the RG530, supporting the digitization process in the enterprise.
Ask for the price
Data transfer and power supply
The triggered reader is powered directly by the connected device via a 13-pin port, without the need for additional batteries. Once the RG530 is connected via the port, the reader acts like an automated keyboard and is able to transfer data to applications such as SAP, Microsoft Word, emails, etc., making the entire registration process faster and more accurate.
Characteristics
| Scanner | MR (mid range) Zebra SE4750 MR (~6 m) ER (extended range) Zebra SE4850 ER (~18 m) |
|---|---|
| Dimensions | Size: 202 x 90.4 x 127mm Weight: 377.1g |
| Protection types | IP68 MIL-STD 810H military standard |
rg
Data sheet
- Size
- 202 x 90,4 x 127 mm
- Weight
- 377,1g
To ensure flexible and reliable data capture in industrial environments, the RG530 smartphone is equipped with a specially designed portable barcode scanner. The trigger-activated scanner is ready to use and capable of quickly and efficiently capturing both 1D and 2D barcodes, even when they are dirty or distorted. The product is available in two variants, enabling short- and long-distance data collection. Thanks to the use of Zebra scanners, the reader is capable of reading codes from a distance of up to 6 meters or 18 meters, depending on the variant selected. In addition, the RG-TH operates in the HID standard, which enables real-time data transfer between the reader and the RG530, supporting the digitization process in the enterprise.
