- New

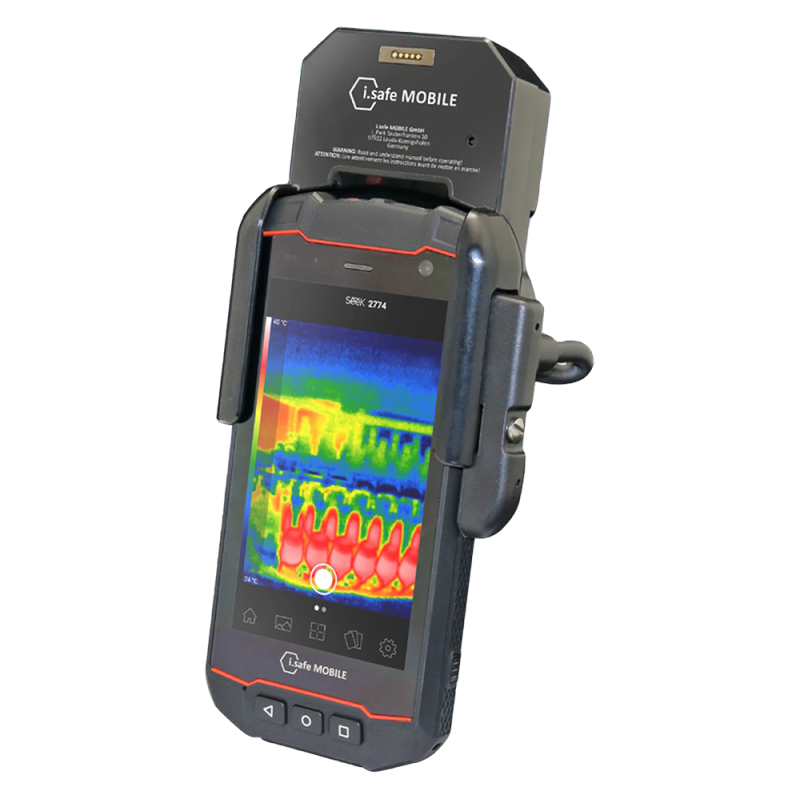

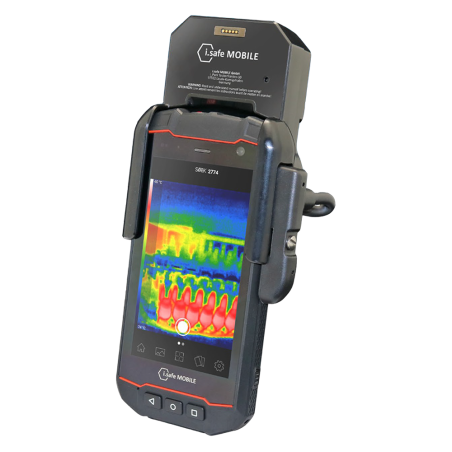

THERMAL IMAGING CAMERA IS-TC1A.M1
1095,00 € nett
The thermal camera IS-TC1A.M1, in combination with the industrial smartphone IS530.M1 detects temperatures in the Exhazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.M1 smartphone.
Explosion-proof feature:
ATEX: I M1 Ex ia I Ma
Ask for the price
Benefits
- Recording, analysis, and documentation of thermal imaging.
- Wide range of operation.
Characteristics
Sensor resolution 200 (h) x 150 (v) / 30000 pixels / FixFocus / digital zoom Sensor sensitivity 65 mK (typical) Refresh rate <9Hz to 32Hz Scope of operation Temperature from -40 °C to 330 °C Measurement accuracy ± 7 °C and 7 % (from 5 °C to 140 °C) / ± 1 O °C and 1 O% (from 140 °C to 330 °C) Detection range Up to 300m Recognition range Up to 75m Identification range Up to 25m Viewing range 35° (HFOV) / 26° (VFOV) Communication Via the ISM of the IS530.1 smartphone Power supply Through a connected device Dimensions Size: 112 x 82 x 50 mm / Weight: 190 g Protection type IP67 and MIL-STD 81 0H / operating temperature range from -10 °C to + 60 °C
M1
Data sheet
- Size
- 112 x 82 x 50 mm
- Weight
- 190 g
Comments (0)
1095,00 € nett
The thermal camera IS-TC1A.M1, in combination with the industrial smartphone IS530.M1 detects temperatures in the Exhazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.M1 smartphone.
Explosion-proof feature:
ATEX: I M1 Ex ia I Ma
