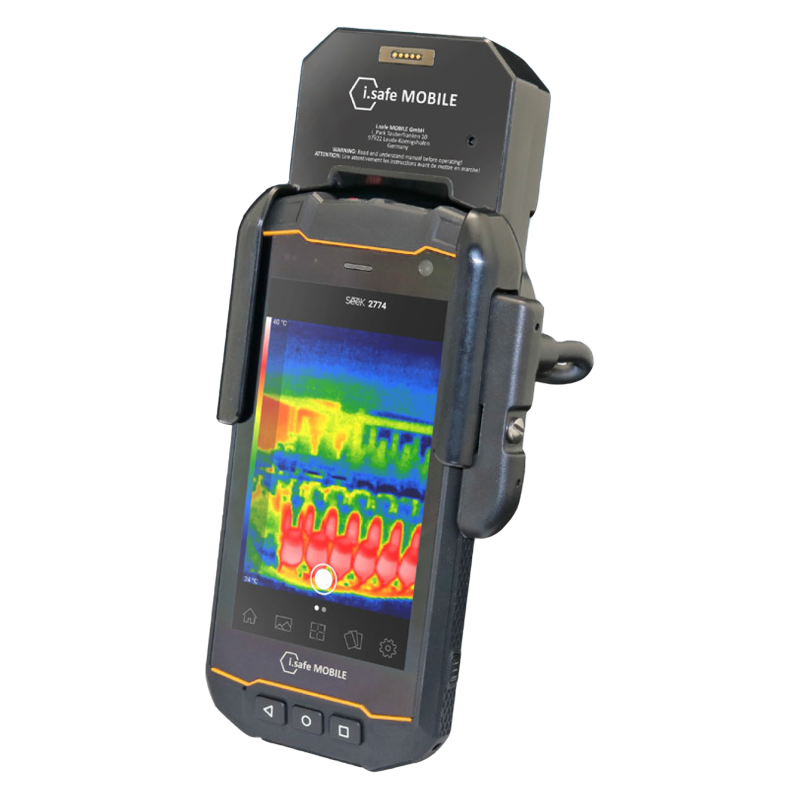

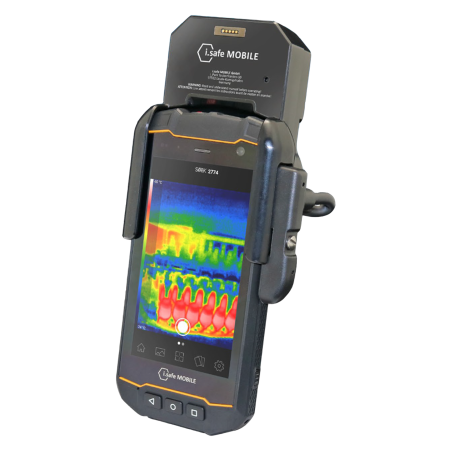

THERMAL IMAGING CAMERA IS-TC1A.2
1040,00 € nett
The thermal camera IS-TC1A.2, in combination with the industrial smartphone IS530.2 detects temperatures in the Ex-hazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.2 smartphone.
Explosion-proof feature:
ATEX: II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc
IECEx: Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc
Ask for the price
Benefits:
- Recording, analysis, and documentation of thermal imaging.
- Wide range of operation.
- For zone 2/22.
Characteristics:
Sensor resolution: 200 (h) x 150 (v) / 30000 pixels / FixFocus / digital zoom Sensor sensitivity: 65 mK (typical) Frame rate: <9 Hz to 32 Hz Operating range: Temperature from -40 °C to 330 °C Measurement accuracy: ± 7 °C and 7% (from 5 °C to 140 °C) / ± 1 O °C and 1 O% (from 140 °C to 330 °C) Detection range: Up to 300 m Recognition range: Up to 75 m Identification range: Up to 25 m Viewing range: 35° (HFOV) / 26° (VFOV) Communication: via ISM smartphone IS530.1 Power supply: via connected device Dimensions: Size: 112 x 82 x 50 mm / weight: 190 g Protection type: IP67 I MIL-STD 81 0H / operating range at -10 °C to + 60 °C
2
Data sheet
- Size
- 112 x 82 x 50
- Weight
- 190
