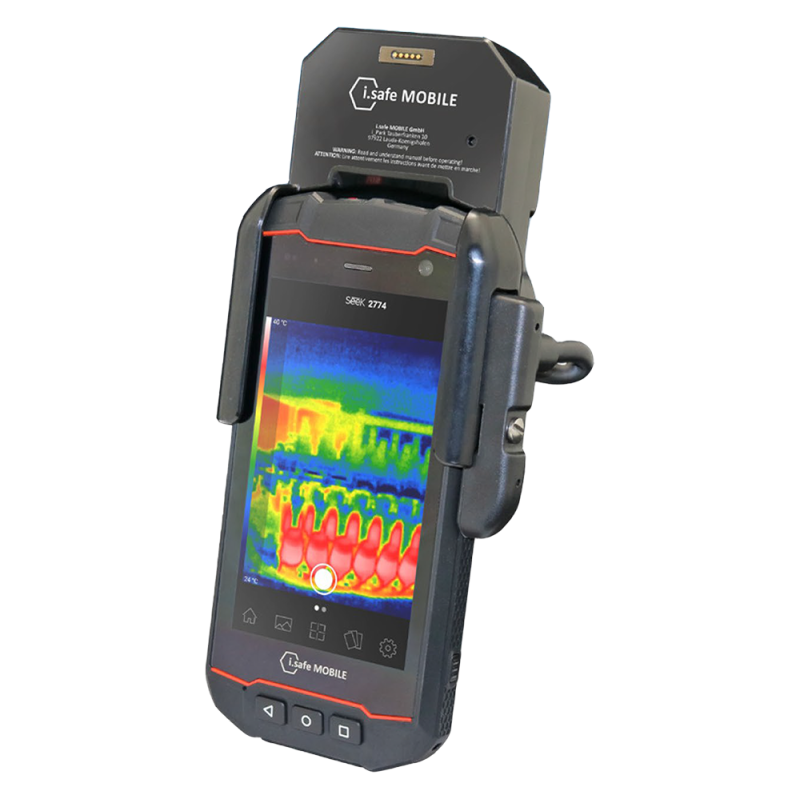

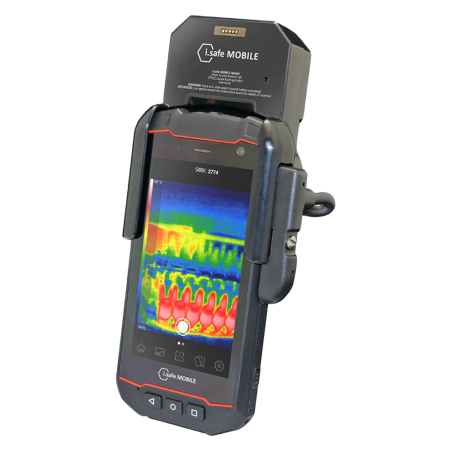

THERMAL IMAGING CAMERA IS-TC1A.1
1095,00 € net
The IS-TC1A.1 thermal imaging camera combined with the IS530.1 industrial smartphone detects temperatures in hazardous areas from -40 °C to 330 °C in seconds using the Seek Thermal app (free download on Google Play). Thermal images and video are processed and documented by the ISM interface of the IS530.1 smartphone.
Explosion-proof feature:.
II 2G Ex ib IIC T4 Gb II
2D Ex ib IIIC T135°C Db
Ask for the price
Benefits:
- Recording, analysis, and documentation of thermal imaging.
- Wide range of operation.
Characteristics
Sensor resolution: 200 (h) x 150 (v) / 30000 pixels / FixFocus / digital zoom Sensor sensitivity: 65 mK (typical) Refresh rate: <9 Hz to 32 Hz Operating range Temperature: -40 °C to 330 °C Measurement accuracy: ± 7 °C and 7% (from 5 °C to 140 °C) / ± 1 O °C and 1 O% (from 140 °C to 330 °C) Detection range: Up to 300 m Recognition range: Up to 75 m Identification range: Up to 25 m Viewing range: 35° (HFOV) / 26° (VFOV) Communication: Via ISM smartphone IS530.1 Power supply: Via the connected device Dimensions: Size: 112 x 82 x 50 mm / Weight: 190 g Protection type: IP67 I MIL-STD 81 0H / operating range from -10 °C to + 60 °C
