  • SUPPORT INSULATORS TYPE (1-7)W..(A, B, C, D)(1, 2, 3, 4)-(D)(1, 2, 3)

SUPPORT INSULATORS TYPE (1-7)W..(A, B, C, D)(1, 2, 3, 4)-(D)(1, 2, 3)

Support Insulators Type (1-7)W with A, B, C, D variants and multiple configurations. Explore specifications and suitable applications.

Rated voltage: 2000 V, 8000 V, 10000 V, 11000 V

Working temperature: -45°C to +120°C

Relative humidity [40°C]: 95%

Corrosivity category C5 according to PN-EN ISO 12944-2

PN-EN IEC 60079-0:2018, equivalent to IEC 60079-0:2017; PN-EN 60079-1:2014, equivalent to IEC 60079-1:2014; PN-EN 60079-7:2016, equivalent to IEC 60079-1:2015

 I M2 Ex eb I Mb II

2G Ex eb IIC Gb



Ask for the product

Designation of insulators: (1–7)W..(A, B, C, D)(1, 2, 3, 4)–(D)(1, 2, 3):

(1-7)W..(A, B, C, D)(1, 2, 3, 4)

Voltage

W – support insulator symbol

Thread – M1

Diameter ØD1

Design according to drawing

1

3200V

8

M8

A

Ø55

1



2

4000V

10

M10

B

Ø75

2

3

5000V

12

M12

C

Ø90

3

4

6300V

16

M16

D

Ø110

4

5

8000V



6

10000V

7

11000V

(1-7)W..(A, B, C, D)(1, 2, 3, 4)-D(1.2.3)

Voltage

W – support insulator symbol

Thread – M1

Diameter ØD1

Design according to drawing

Divider construction

1

3200V

8

M8

A

Ø55

1

D1

2

4000V

10

M10

B

Ø75

2

D2

3

5000V

12

M12

C

Ø90

3

D3

4

6300V

16

M16

D

Ø110

4



5

8000V



6

10000V

7

11000V

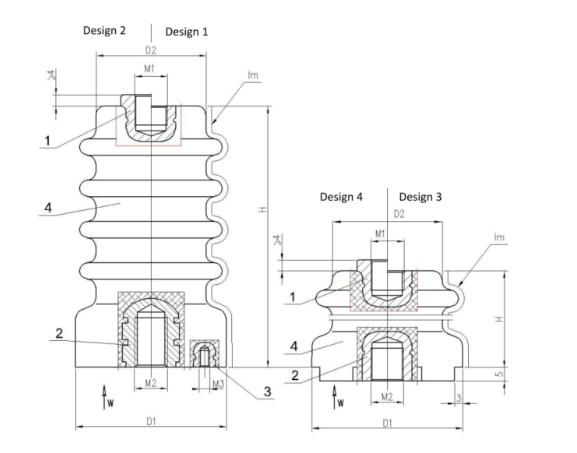

Insulator design versions (1–7)W..(A, B, C, D)(1, 2, 3, 4)

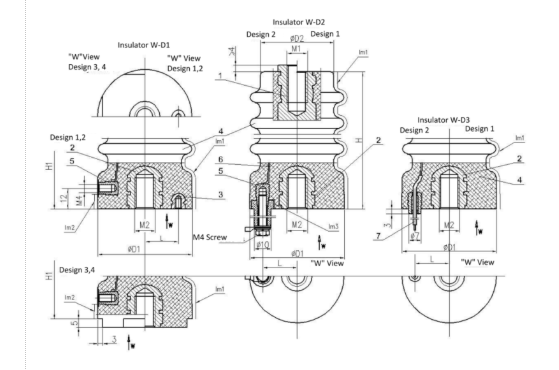

Insulator design versions (1–7)W..(A, B, C, D)(1, 2, 3, 4)–D(1, 2, 3)

Overall dimensions of insulators (1–7)W..(A, B, C, D)(1, 2, 3, 4)–(D)(1, 2, 3)

Insulator Type

Dimensions [mm]

D1

D2

L

(1÷7)W..A(-D..)

Ø55

Ø43

20

(1÷7)W..B(-D..)

Ø75

Ø60

25,5

(1÷7)W..C(-D..)

Ø90

Ø75

33

(1÷7)W..D(-D..)

Ø110

Ø95

33

Connection dimensions of insulators (1–7)W..(A, B, C, D)(1, 2, 3, 4)–(D)(1, 2, 3)

Insulator type

Rated voltage

Dimensions [mm]

M1

M2

M3

H

H1

1W8..(-D..)



≤ 3200V

M8

M8; M10



M4



≥37



≥55

1W10..(-D..)

M10

M10;M12

1W12..(-D..)

M12

M12;M16

1W16..(-D..)

M16

M16



2W8..(-D..)



≤ 4000V

M8

M8; M10



M4



≥45



≥60

2W10..(-D..)

M10

M10;M12

2W12..(-D..)

M12

M12;M16

2W16..(-D..)

M16

M16



3W8..(-D..)



≤ 5000V

M8

M8; M10



M4



≥55



≥67

3W10..(-D..)

M10

M10;M12

3W12..(-D..)

M12

M12;M16

3W16..(-D..)

M16

M16



4W10..(-D..)



≤ 6300V

M10

M10;M12



M4



≥65



≥78

4W12..(-D..)

M12

M12;M16

4W16..(-D..)

M16

M16



5W10..(-D..)



≤ 8000V

M10

M10;M12



M4



≥95



≥96

5W12..(-D..)

M12

M12;M16

5W16..(-D..)

M16

M16



6W10..(-D..)

≤

10000V

M10

M10;M12



M4



≥105



≥120

6W12..(-D..)

M12

M12;M16

6W16..(-D..)

M16

M16



7W10..(-D..)

≤

11000V

M10

M10;M12



M4



≥115



≥127

7W12..(-D..)

M12

M12;M16

7W16..(-D..)

M16

M16

Terminal parameters of signaling insulators (1–7)W..(A, B, C, D)(1, 2, 3, 4)–(D)(1, 2, 3)

Insulator type

Rated voltage

U±20% [V]

I±20% [μA]

2W..-D(1,2,3)*

4000V

325

60

3W..-D(1,2,3)

5000V

310

52

4W..-D(1,2,3)

6300V

320

64

5W..-D(1,2,3)

8000V

350

95

7W..-D(1,2,3)

10000V

300

96

7W..-D(1,2,3)

11000V

330

106

*does not apply to version 2W..A-D(1,2,3)
