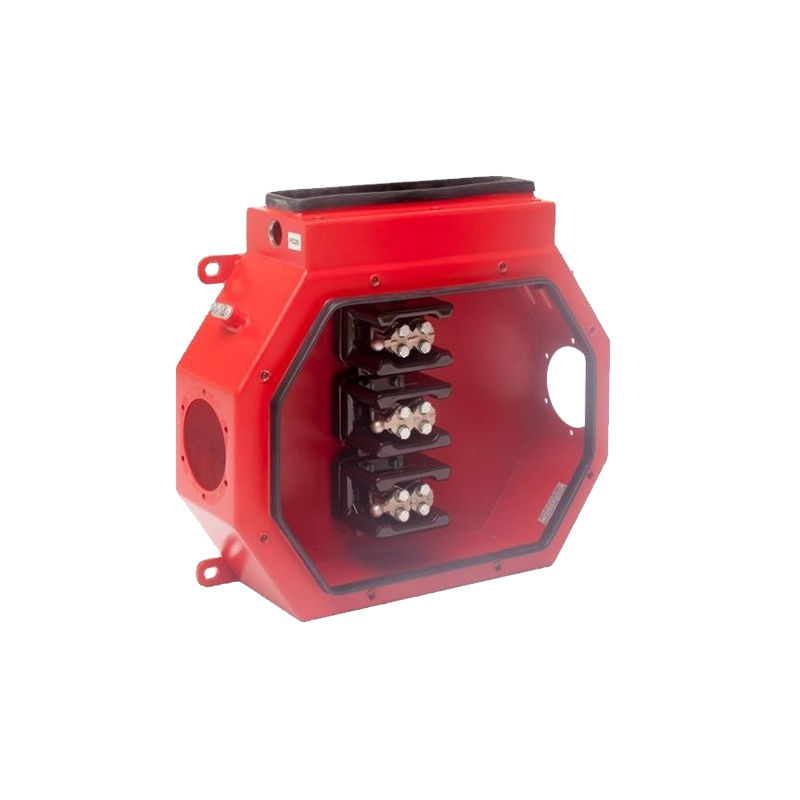

JUNCTION BOXES GOTHE 53130
High voltage junction box with massive ceramic-brass terminals for connection of 2 high voltage cables.
Casing and cover of steel sheet 3mm, the casing is provided with 3 ceramic terminal sockets to connect cables and conductors up to 150mm², internal and external earthings, sidebox is provided for connecting supervising and control conductors up to 6mm², option optical fibres.
Good for Zone 1&2 and gases.
Optional: casing waterproof IP 67, pressure compensating element to avoid condensation.
Ask for the product
|
Type: |
53130 |
|
Rated voltage: |
6,6 kV AC |
|
Rated current: |
up to 370 A |
|
Protection class: |
IP65 |
|
Operating temperature: |
T6 to +80°C |
|
Ambient temperature: |
-20°C to +40°C |
|
Sealing: |
EPDM |
|
Cable cross section: |
16 to 150 mm² |
|
Material: |
sheet steel, stainless steel AISI 316Ti |
|
Wall thickness: |
3 mm |
|
Surface treatment: |
painted, 2K-PUR RAL 3002 |
|
Dimensions (W/D/H): |
650 x 480 x 230 mm |
|
Different designs: |
1 with/without side box |
|
Side box: |
500 V AC/DC, 10 A, max. 10 mm² |
|
Explosion-proof: |
Ex e |
