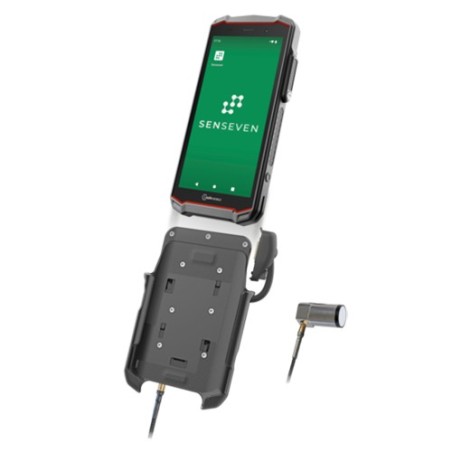

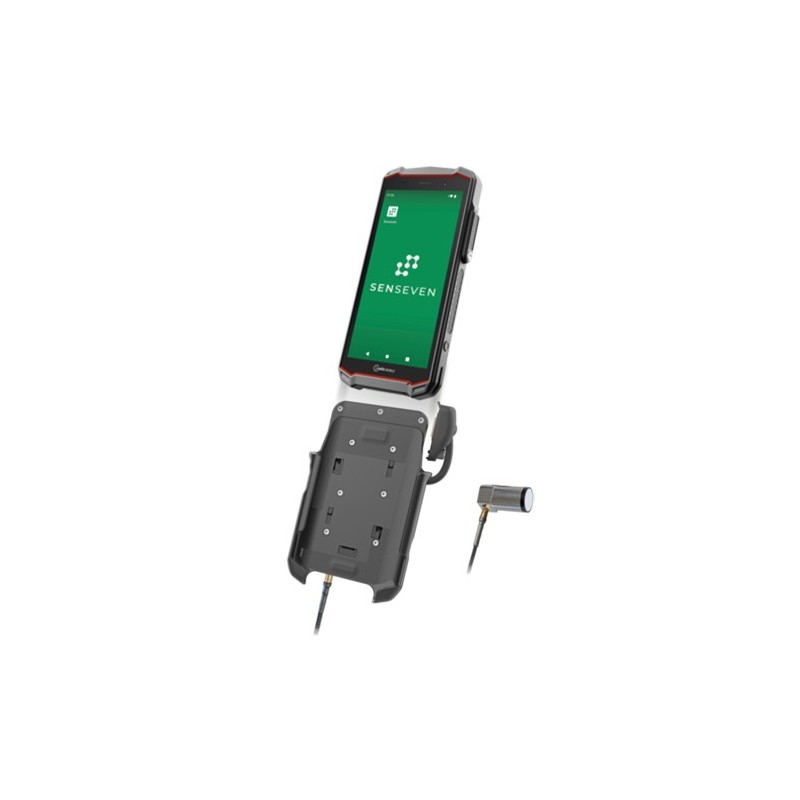

VALVE SENSE IS-VS1A.1

The Valve Sense control system for valve leak detection combines high-quality acoustic emission sensors with a 5G smartphone from the IS540.1 series and software from Senseven. Intuitive operation, automatic leak detection, comprehensive data management and a high-quality processor for high-speed data processing make it a unique tool on the market for maintenance in the most demanding industrial areas.

Explosion-proof feature:

II 2G Ex ib IIC T4 Gb

II 2D Ex ib IIIC T135°C Db

Ask for the price

Benefits

User-friendly application without expert knowledge
Detection of leaks using appropriate algorithms
Inspection controlled by software
Automatic data transfer to a cloud-based data center
Cost containment through predictive maintenance
Prevent unscheduled production process downtime

Characteristics

Analog Bandwidth Range from (kHz) 20 Analog Bandwidth Range from (kHz) 500 Input signal level 94dBAE / 100dBAE Sampling rate res.: 2 MHz / 16 bit Noise level <12μVRMS (95 - 300kHz) Power consumption <700mW Dimensions Size: 141.2 x 96.0 x 51.85 mm Weight: 219.3 g Types of protection Operation in the temperature range from -20 °C to +55 °C Scope of delivery:

Measuring device IS-VS1A.1
Sensor IS-SU150F1.1
Sensor IS-SU150F2.1
Waveguide (Waveguide) IS-WGLF1.1
Waveguide (Waveguide) IS-WGxx.1
Sensor cable
Coupling carrier
Coupling foil
Smartphone IS540.1
Battery
safe PROTECTOR 2.0
Universal power adapter
Screwdriver
Safety instructions
Quick start guide
Display protection film
Display cleaning cloth
Case
