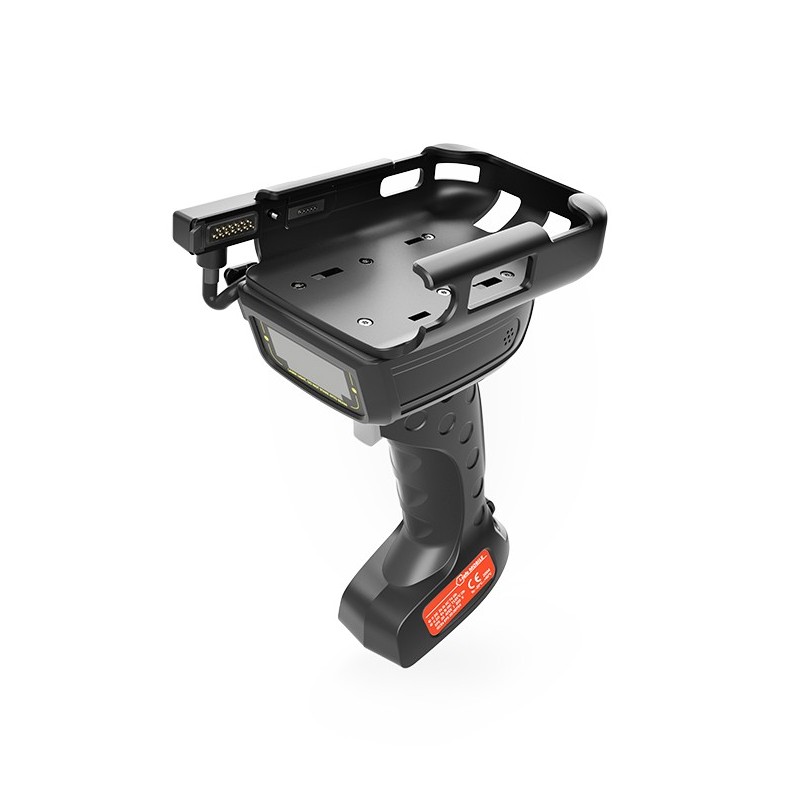

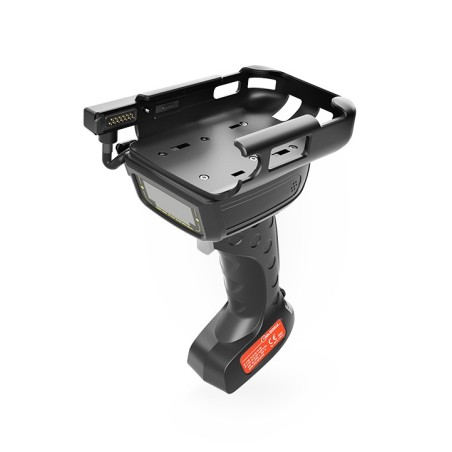

HAND-HELD BARCODE SCANNER – IS-TH1ER.M1
1760,00 € nett
The mobile multifunctional set consisting of a Trigger Handle (hand-held barcode scanner) and an industrial smartphone IS530. M1 is a flexible combination for reliable data acquisition in Ex areas. The HID-active, readyto- use high-performance scanner captures any 1D or 2D barcodes up to 18 meters via the reliable Zebra OEM imager scan engines. The data is further processed directly via the IS530.M1 smartphone connected via the ISM interface.
Explosion-proof feature:
I M1 Ex ia op is I Ma
Ask for the price
Benefits
- Efficient collection and processing of data from 1D or 2D barcodes
- Direct data transfer via universal multifunctional interface (ISM)
- Power supply using a connected device (no batteries)
- Direct interface connection to the device, eliminates the need for Bluetooth®
Characteristics
Scanner MR (mid range) Zebra SE4750 MR (~6 m) ER (extended range) Zebra SE4850 ER (~18 m) Dimensions Size: 202 x 90.4 x 127 mm Weight: 377.1 g Types of protection IP68 Military standard MIL-STD 810H Operation in the temperature range from -20 °C to +55 °C
M1
Data sheet
- Size
- 202 x 90,4 x 127 mm
- Weight
- 377,1 g
